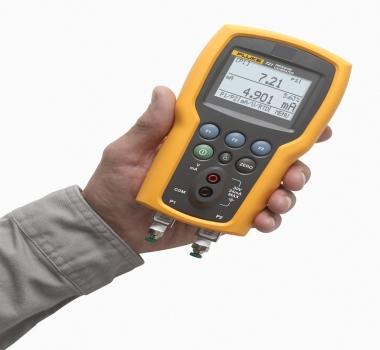

The 721 can be configured by selecting either a 16 PSI (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).

• Ideal for gas flow calibration (custody transfer) applications
• Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
• Pt100 RTD input for temperature measurement, (probe optional)
• Measures 4 to 20 mA signals
• Internal 24 V loop power supply can power a transmitter under test
• Measure up to 30 V dc, check 24 V loop power supplies
• Extend pressure measurement range with connection to external 700 series pressure modules (29 ranges)
• Large backlit graphic display can display up to three inputs simultaneously
• Store five instrument setups for recall and use

• 型號(hào)                 描述
  Fluke-721-1601	Precision Pressure Calibrator Includes Dual Sensor Pressure Calibrator, 16 PSIG, 100 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-1603	Precision Pressure Calibrator Includes Dual Sensor Pressure Calibrator, 16 PSIG, 300 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-1605	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 16 PSIG, 500 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-1610	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 16 PSIG, 1000 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-1615	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 16 PSIG, 1500 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-1630	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 16 PSIG, 3000 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-1650	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 16 PSIG, 5000 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-3601	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 36 PSIG, 100 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-3603	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 36 PSIG, 300 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-3605	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 36 PSIG, 500 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-3610	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 36 PSIG, 1000 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-3615	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 36 PSIG, 1500 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-3630	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 36 PSIG, 3000 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads
  Fluke-721-3650	Precision Pressure Calibrator Includes: Dual Sensor Pressure Calibrator, 36 PSIG, 5000 PSIG Soft case Four (4) AA batteries Manual Traceable calibration certificate Test leads

  通用配件:

  配件                 描述

  配件                 描述
  Fluke 720RTD	RTD Probe for 721 and 719Pro
  Fluke-720URTDA	Universal RTD Adapter for Fluke 721 and 719Pro
  750Pxx	Pressure Module Series




  Specifications 1-Year
  Low pressure sensor	Range	Resolution	Accuracy
  	-14 psi to +16 psi,             -0.97 bar to 1.1 bar	0.001 psi,             0.0001 bar	0.025 % of full scale
  High pressure sensor	-12 psi to +100 psi,             -0.83 bar to 6.9 bar	0.01 psi,             0.0001 bar	0.025 % of full scale
  General Specifications
  Instrument setup recall		Last used on power-up
  Environmental		Operating temperature -10 °C to +50 °C             Storage temperature (without batteries) -20 °C to +60 °C
  Altitude		2,000 meters
  Ingress protection		IP-40
  Power requirements		6.0 v dc
  Battery life		>35 hours, typical usage
  Batteries required		(4) Standard AA cells
  Dimentions (HxWxD)		7.9" X 4.3" X 2.3" (20 cm X 11 cm X 5.8 cm)
  Weight		03539 kg (1 lb 3 oz)
  Connectors/ports pressure		Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe
  Electrical and Temperature Measurement 1-Year
  Function	Range	Resolution	Accuracy
  mA measure	0 to 24 mA	0.001 mA	±0.015% of rdg ±0.002mA
  VDC measure	0 to 30 VDC	0.001V	±0.015% of rdg ±0.002V
  *Temperature measure (RTD/ Ohms)	-40 °C to 150 °C             (-40 °F to 302 °F)	0.01 °C, 0.01 °F	±0.015% of rdg ±0.02 ohms ±0.1°C (±0.2°F) ±0.25 degC (±0.45             degF) combined uncertainty when using 720 RTD probe accessory
  Loop power supply	24V	N/A	24 mA @ 24V
  *Temperature measurement requires optional Fluke-720RTD Pt-100 RTD probe available as an accessory
  Temperature Effect
  No effect on accuracy on all functions from 15 °C to 35 °C
  Add ± 0.002 % F.S./°C for temps outside of 15 °C to 35 °C
  Available Pressure Engineering Units
  psi, bar, mbar, kPa, kgcm2, [email protected]°C, [email protected]°C, [email protected]°C, [email protected]°C, [email protected]°C, [email protected]°C, [email protected]°F, [email protected]°C, [email protected]°C, [email protected]°C, [email protected]°C, [email protected]°F
